Landing Craft
A real workhorse for those who need to move . Volvo Penta power or outboards power this vessel’s innovative hull. It has a variable chine width, narrow at the bow to cut through waves and wide at the stern to get up on plane quickly, add stability at slow speeds, and allow for loading the vessel with up to 10,000 lbs. The sides of the hull are convex to increase the strength and durability. The cabin can be configured and finished to suit most applications.
Key Features
-

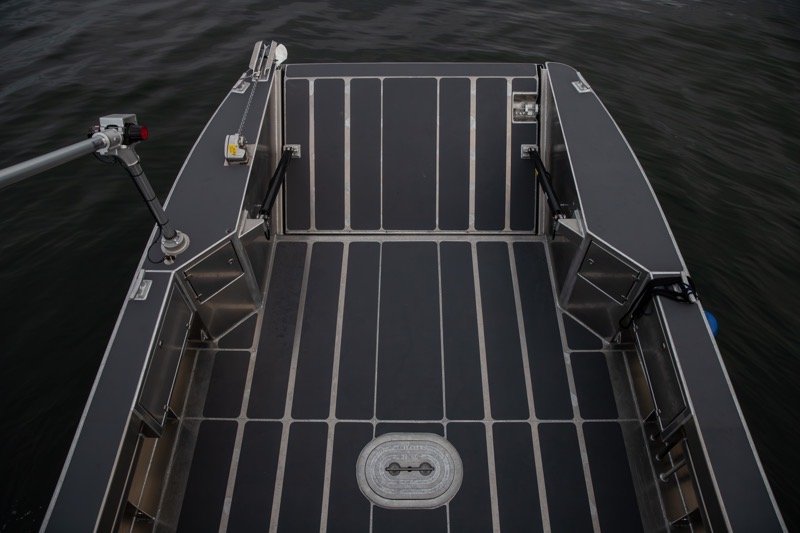

Cargo Capacity
This line of boats is designed to be able to move your equipment, materials, toys, and has ample displacement to do so.
-

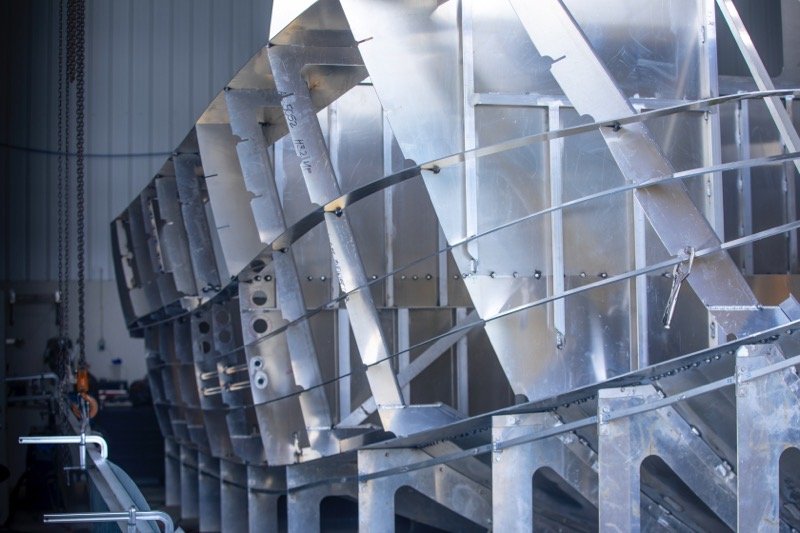

Durability
The robust hull is built to withstand whatever nature throws at it. Strength is added with its double side plates featuring a convex profile, 4” internal/external keel design, and full-height formed frames locked in with full-length stringers.
-
Efficiency
The reliable hull was design with maximum efficiency in mind. With its enormous aft chines and fine bow entry, this hull jumps up on plane and cruises through a rough sea with a full load

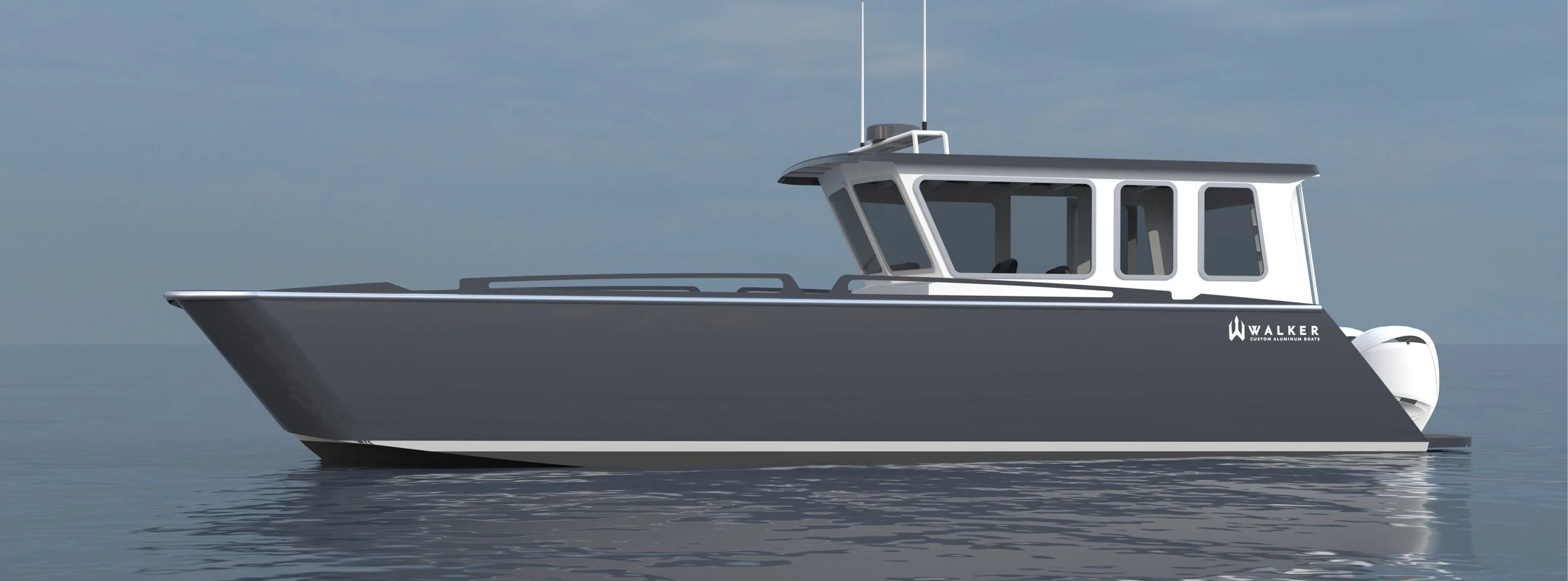

The Landing Craft
-
LC 28 i/o
An efficient & reliable platform capable of moving 5,000 lbs
-
LC 28 OB
For those seeking a high-performance vessel capable of hauling cargo
-
LC 40 OB
The largest of the series capable of moving a full size pick up truck in a hurry
LC 28 i/o Specifications
Specifications
LOA (including extended cockpit) - 9.45m / 31’
Beam - 3.96m / 13’4”
Height of sides - 0.61m / 2’2”
Bottom width - 3m / 10’
Approx. Dry Weight - 4535kg / 10,000 lbs
Deadrise - Variable 20 deg
Fuel Capacity - 946L / 250 USG
Maximum HP - 900 hp
Aluminum Thickness Bottom (5086) - 1/4”
Aluminum Thickness Sides (5086) - 3/16”
Aluminum Thickness Cabin (5052) - 5/32”
Cockpit Length - 4.5m / 14’11 1/2”
Cabin Length - 2.1m / 6’11”
V-Berth Length - 1.3m / 4’4”
Cabin Headroom - 1.98 / 6’6”
Hull Features
5086 Marine grade aluminum hull
5052 Marine grade aluminum cabin
Full-length Internal Keel
Engineered full-length chines
Wide welded gunnels
Fully welded external rub rails/hull stiffness
Anchor rope locker; self-draining with access hatch
Water-tight cabin bulkheads with diamond sea glaze weather-tight door
Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
Heavy Duty Ongaro pantographic Windshield wipers
Raised self-bailing cockpit deck
Integrated fish hold
Welded bow eye with a stainless sleeve
9”x 9” custom cast aluminum bow and stern weld on cleats
Bolt-on sacrificial anodes
Aluminum thru-hull fittings with stainless steel ball valves
Aluminum exterior cabin roof rails
Welded aluminum bow pulpit
Electronics Features
Premium dash switch and gauge panel
Marine color-coded wire harness with water-tight connections
3 Electric Rule 2000 gph auto bilge pumps
High water bilge alarm
Hella navigation lights package
Lumetic dimmable interior LED lighting
Dual engine battery management system with remote panel
Trim tabs
Compact electric horn
USB outlet
Aft cabin LED deck light
3 Group 31 batteries
Battery Management System
Cabin Features
Shockwave S5 suspension module with Corbin helm seat on slider
Shockwave S5 suspension module with Corbin navigator seat
Premium handcrafted black walnut storage cabinets with drawers and stainless latches
Custom dash panel for flush-mounted electronics
Easy care marine vinyl floor
Cup holders
Soft touch headliner
Soft touch wall panels
Custom defrost system
Coating
Zolatone cabin walls & interior
Zolatone cuddy walls
Easy care marine vinyl interior floor
3M vinyl wrap cowling & dodger
LC 28 OB Specifications
Specifications
LOA (including extended cockpit) - 9.45m / 31’
Beam - 3.96m / 13’4”
Height of sides - 0.61m / 2’2”
Bottom width - 3m / 10’
Approx. Dry Weight - 4535kg / 10,000 lbs
Deadrise - Variable 20 deg
Fuel Capacity - 946L / 250 USG
Maximum HP - 900 hp
Aluminum Thickness Bottom (5086) - 1/4”
Aluminum Thickness Sides (5086) - 3/16”
Aluminum Thickness Cabin (5052) - 5/32”
Cockpit Length - 4.5m / 14’11 1/2”
Cabin Length - 2.1m / 6’11”
V-Berth Length - 1.3m / 4’4”
Cabin Headroom - 1.98 / 6’6”
Hull Features
5086 Marine grade aluminum hull
5052 Marine grade aluminum cabin
Full-length Internal Keel
Engineered full-length chines
Wide welded gunnels
Fully welded external rub rails/hull stiffness
Anchor rope locker; self-draining with access hatch
Water-tight cabin bulkheads with diamond sea glaze weather-tight door
Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
Heavy Duty Ongaro pantographic Windshield wipers
Raised self-bailing cockpit deck
Integrated fish hold
Welded bow eye with a stainless sleeve
9”x 9” custom cast aluminum bow and stern weld on cleats
Bolt-on sacrificial anodes
Aluminum thru-hull fittings with stainless steel ball valves
Aluminum exterior cabin roof rails
Welded aluminum bow pulpit
Electronics Features
Premium dash switch and gauge panel
Marine color-coded wire harness with water-tight connections
3 Electric Rule 2000 gph auto bilge pumps
High water bilge alarm
Hella navigation lights package
Lumetic dimmable interior LED lighting
Dual engine battery management system with remote panel
Trim tabs
Compact electric horn
USB outlet
Aft cabin LED deck light
3 Group 31 batteries
Battery Management System
Cabin Features
Shockwave S5 suspension module with Corbin helm seat on slider
Shockwave S5 suspension module with Corbin navigator seat
Premium handcrafted black walnut storage cabinets with drawers and stainless latches
Custom dash panel for flush-mounted electronics
Easy care marine vinyl floor
Cup holders
Soft touch headliner
Soft touch wall panels
Custom defrost system
Coating
Zolatone cabin walls & interior
Zolatone cuddy walls
Easy care marine vinyl interior floor
3M vinyl wrap cowling & dodger
LC 40 OB Specifications
Specifications
LOA (including extended cockpit) - 9.45m / 31’
Beam - 3.96m / 13’4”
Height of sides - 0.61m / 2’2”
Bottom width - 3m / 10’
Approx. Dry Weight - 4535kg / 10,000 lbs
Deadrise - Variable 20 deg
Fuel Capacity - 946L / 250 USG
Maximum HP - 900 hp
Aluminum Thickness Bottom (5086) - 1/4”
Aluminum Thickness Sides (5086) - 3/16”
Aluminum Thickness Cabin (5052) - 5/32”
Cockpit Length - 4.5m / 14’11 1/2”
Cabin Length - 2.1m / 6’11”
V-Berth Length - 1.3m / 4’4”
Cabin Headroom - 1.98 / 6’6”
Hull Features
5086 Marine grade aluminum hull
5052 Marine grade aluminum cabin
Full-length Internal Keel
Engineered full-length chines
Wide welded gunnels
Fully welded external rub rails/hull stiffness
Anchor rope locker; self-draining with access hatch
Water-tight cabin bulkheads with diamond sea glaze weather-tight door
Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen
Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen
Heavy Duty Ongaro pantographic Windshield wipers
Raised self-bailing cockpit deck
Integrated fish hold
Welded bow eye with a stainless sleeve
9”x 9” custom cast aluminum bow and stern weld on cleats
Bolt-on sacrificial anodes
Aluminum thru-hull fittings with stainless steel ball valves
Aluminum exterior cabin roof rails
Welded aluminum bow pulpit
Electronics Features
Premium dash switch and gauge panel
Marine color-coded wire harness with water-tight connections
3 Electric Rule 2000 gph auto bilge pumps
High water bilge alarm
Hella navigation lights package
Lumetic dimmable interior LED lighting
Dual engine battery management system with remote panel
Trim tabs
Compact electric horn
USB outlet
Aft cabin LED deck light
3 Group 31 batteries
Battery Management System
Cabin Features
Shockwave S5 suspension module with Corbin helm seat on slider
Shockwave S5 suspension module with Corbin navigator seat
Premium handcrafted black walnut storage cabinets with drawers and stainless latches
Custom dash panel for flush-mounted electronics
Easy care marine vinyl floor
Cup holders
Soft touch headliner
Soft touch wall panels
Custom defrost system
Coating
Zolatone cabin walls & interior
Zolatone cuddy walls
Easy care marine vinyl interior floor
3M vinyl wrap cowling & dodger
Gallery
