Dive Boat

Our dive boat is equipped with a Volvo Penta i/o for increased range. It has a variable chine width, narrow at the bow to cut through waves and wide at the stern to get up on plane quickly, and aid in stability at slow speeds. The sides of the hull are convex to increase the strength and durability. The cabin can be configured and finished to suit most applications. This model comes outfitted with a dive bottle holder and ladder

Key Features

  • Wet Cockpit

    The cockpit has the capability to switch between self-bailing or wet, keeping your catch in good condition.

  • Durability

    The robust hull is built to withstand whatever nature throws at it. Strength is added with its double side plates featuring a convex profile, 4” internal/external keel design, and full-height formed frames locked in with full-length stringers.

  • Efficiency

    The reliable hull was design with maximum efficiency in mind. With its enormous aft chines and fine bow entry, this hull jumps up on plane and cruises through a rough sea in comfort.

The Dive Boat

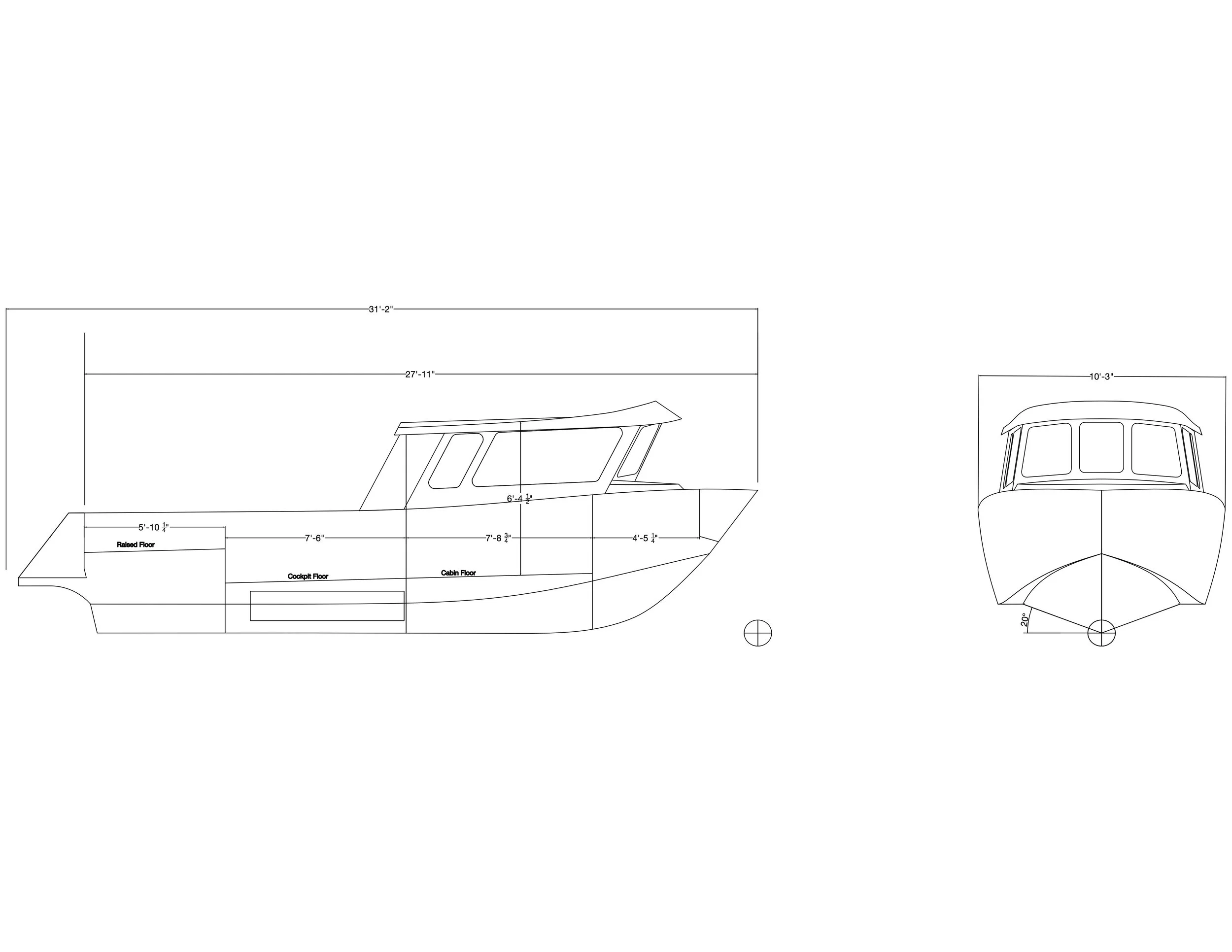

DB 31 Specifications

Specifications

  • LOA (including extended cockpit) - 9.45m / 31’

  • Beam - 3.96m / 13’4”

  • Height of sides - 0.61m / 2’2”

  • Bottom width - 3m / 10’

  • Approx. Dry Weight - 4535kg / 10,000 lbs

  • Deadrise - Variable 20 deg

  • Fuel Capacity - 946L / 250 USG

  • Maximum HP - 900 hp

  • Aluminum Thickness Bottom (5086) - 1/4”

  • Aluminum Thickness Sides (5086) - 3/16”

  • Aluminum Thickness Cabin (5052) - 5/32”

  • Cockpit Length - 4.5m / 14’11 1/2”

  • Cabin Length - 2.1m / 6’11”

  • V-Berth Length - 1.3m / 4’4”

  • Cabin Headroom - 1.98 / 6’6”

Hull Features

  • 5086 Marine grade aluminum hull

  • 5052 Marine grade aluminum cabin

  • Full-length Internal Keel

  • Engineered full-length chines

  • Wide welded gunnels

  • Fully welded external rub rails/hull stiffness

  • Anchor rope locker; self-draining with access hatch

  • Water-tight cabin bulkheads with diamond sea glaze weather-tight door

  • Aluminum framed Diamond Sea Glaze side slider safety glass windows with screen

  • Aluminum framed Diamond Sea Glaze aft slider safety glass windows with screen

  • Heavy Duty Ongaro pantographic Windshield wipers

  • Raised self-bailing cockpit deck

  • Integrated fish hold

  • Welded bow eye with a stainless sleeve

  • 9”x 9” custom cast aluminum bow and stern weld on cleats

  • Bolt-on sacrificial anodes

  • Aluminum thru-hull fittings with stainless steel ball valves

  • Aluminum exterior cabin roof rails

  • Welded aluminum bow pulpit

Electronics Features

  • Premium dash switch and gauge panel

  • Marine color-coded wire harness with water-tight connections

  • 3 Electric Rule 2000 gph auto bilge pumps

  • High water bilge alarm

  • Hella navigation lights package

  • Lumetic dimmable interior LED lighting

  • Dual engine battery management system with remote panel

  • Trim tabs

  • Compact electric horn

  • USB outlet

  • Aft cabin LED deck light

  • 3 Group 31 batteries

  • Battery Management System

Cabin Features

  • Shockwave S5 suspension module with Corbin helm seat on slider

  • Shockwave S5 suspension module with Corbin navigator seat

  • Premium handcrafted black walnut storage cabinets with drawers and stainless latches

  • Custom dash panel for flush-mounted electronics

  • Easy care marine vinyl floor

  • Cup holders

  • Soft touch headliner

  • Soft touch wall panels

  • Custom defrost system

Coating

  • Zolatone cabin walls & interior

  • Zolatone cuddy walls

  • Easy care marine vinyl interior floor

  • 3M vinyl wrap cowling & dodger
